Set Up Figma MCP for Design-to-Code

Watch the Walkthrough

What You’ll Set Up

By the end of this guide, your AI editor will be able to:

• Read any Figma file directly
• Extract component specifications
• Access design tokens and variables
• Generate code that matches your designs

Prerequisites

• Node.js 18 or higher
• A Figma account with a Personal Access Token
• Cursor or Claude Desktop installed

Step 1: Generate a Figma Access Token

1. Go to Figma > Account Settings
2. Scroll to “Personal Access Tokens”
3. Click “Generate new token”
4. Copy the token (you won’t see it again)

Step 2: Install the MCP Server

npm install -g @anthropic/figma-mcp

Step 3: Configure Your Editor

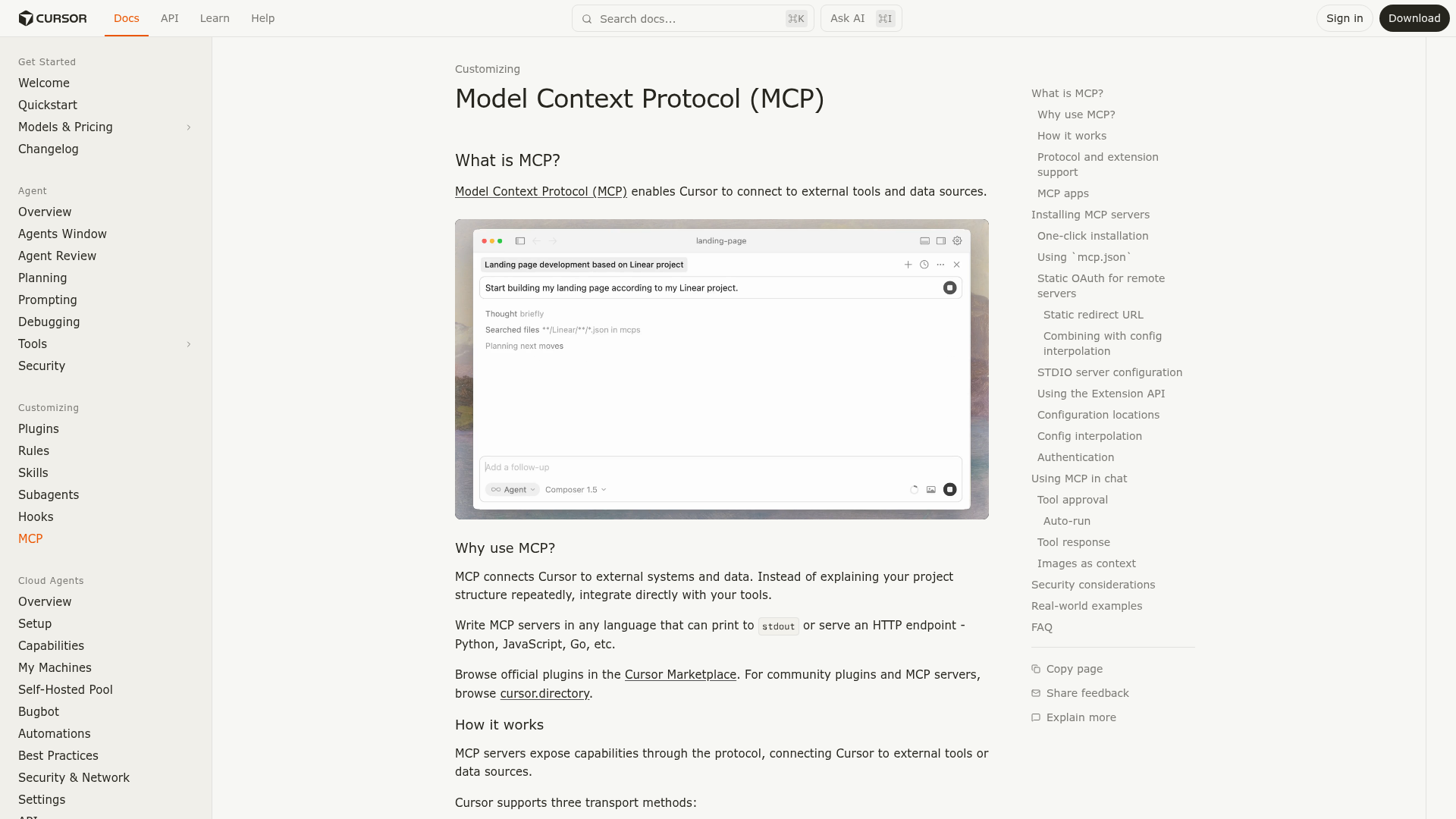

Both Cursor and Claude Desktop read a JSON file that tells them which MCP servers to spin up. Cursor’s docs show the same structure used below:

For Cursor

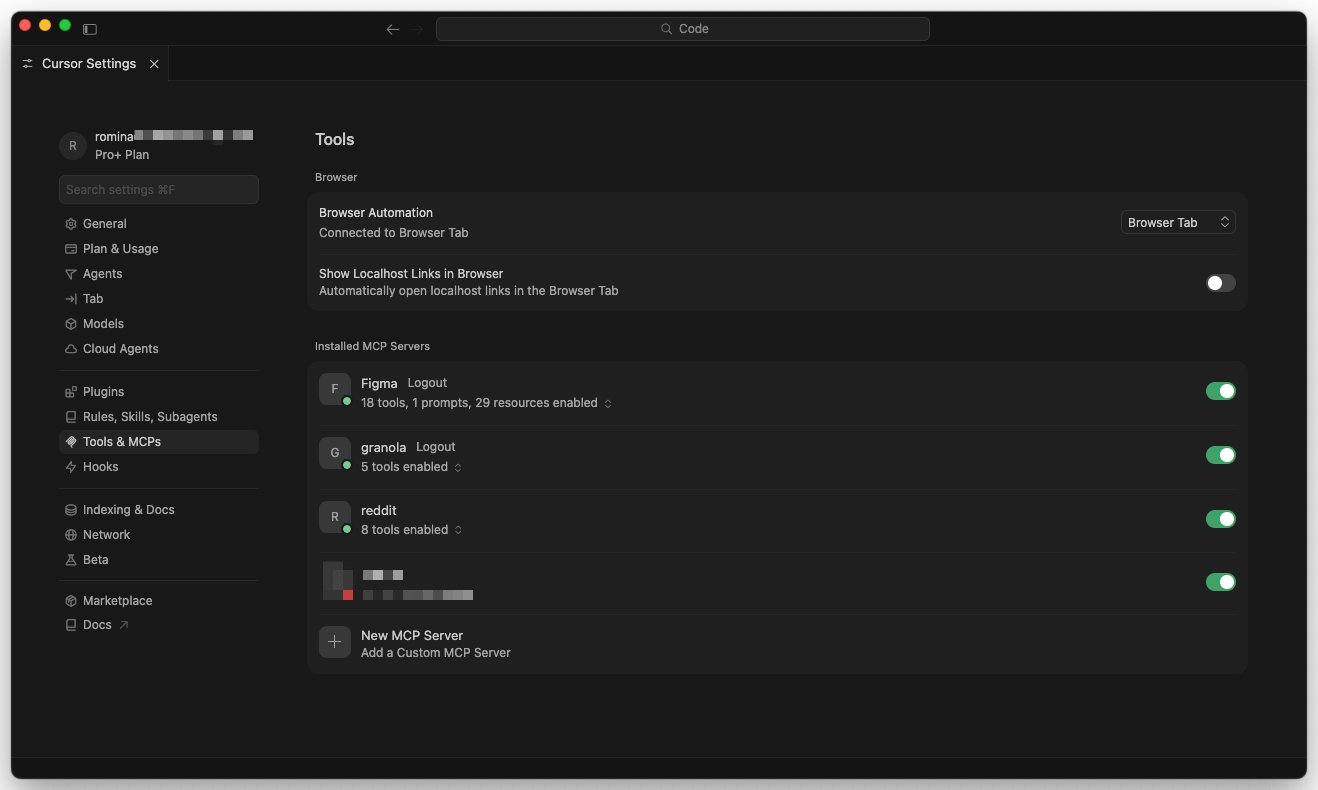

Open Cursor’s settings (Cmd + , on Mac) and go to the MCP & Integrations tab. You can either paste JSON directly, or click the plus icon to add a server through the UI.

Add to .cursor/mcp.json:

{
  "mcpServers": {
    "figma": {
      "command": "figma-mcp",
      "env": {
        "FIGMA_ACCESS_TOKEN": "your-token"
      }
    }
  }
}

After saving, the server should appear in the MCP & Integrations panel with a green status dot. If it doesn’t, restart Cursor.

For Claude Desktop

Add to ~/Library/Application Support/Claude/claude_desktop_config.json (macOS):

{
  "mcpServers": {
    "figma": {
      "command": "figma-mcp",
      "env": {
        "FIGMA_ACCESS_TOKEN": "your-token"
      }
    }
  }
}

Step 4: Verify the Connection

Open your editor and ask the AI:

Can you see my Figma files? List the most recent ones.

If configured correctly, it will list your Figma files.

Troubleshooting

• “Server not found”. Make sure the npm global bin is in your PATH
• “401 Unauthorized”. Check your Figma access token is valid
• “Rate limited”. Figma API has rate limits. Wait a minute and try again

Exercise

Connect Figma MCP and verify it reads a real file

15 min

1. Install the server and paste your token into the config

   Generate a Figma Personal Access Token. Install the MCP server globally. Open .cursor/mcp.json (Cursor) or ~/Library/Application Support/Claude/claude_desktop_config.json (Claude Desktop) and paste the exact JSON from this guide. Replace your-token with the token you just generated. Save the file.

   • The MCP config file exists at the right path for your editor
   • The FIGMA_ACCESS_TOKEN env value is your real token, not the placeholder
   • Restarting the editor shows the Figma MCP server listed as connected

2. Ask the AI to list your recent Figma files

   In your AI chat panel, prompt: “Can you see my Figma files? List the most recent ones with their names.” The response should be real filenames from your account, not a hallucinated list.

   • The AI returns names of files you actually own or can access
   • No “401 Unauthorized” or “server not found” errors in the response
   • You can follow up with “Show me the components in [filename]” and get a real list back
